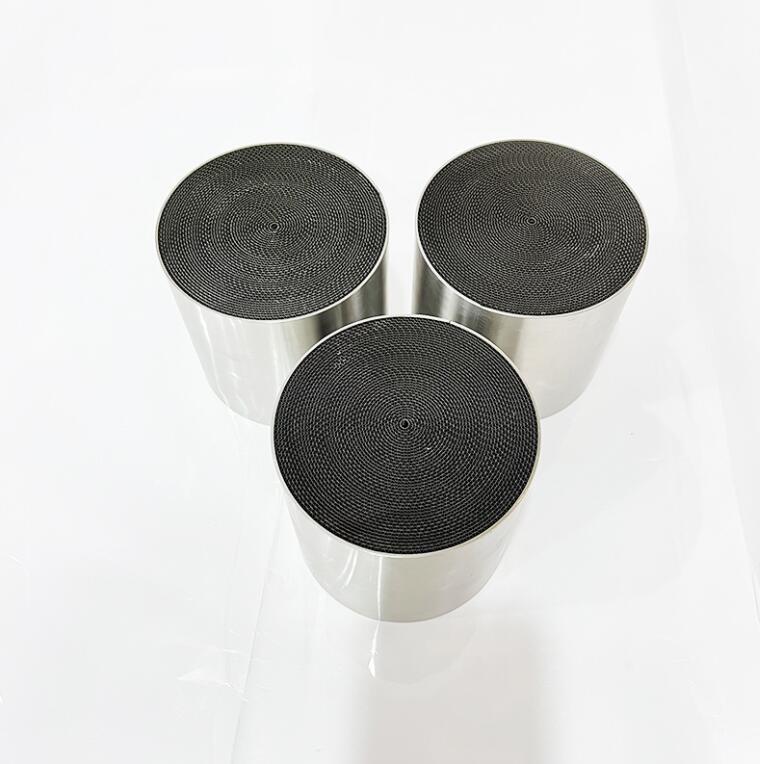

Metallic Monolith Substrate for Catalytic Converter

QIAUTS ® Metallic Honeycomb Substrates have 80 / 100 / 200 / 300 / 400 / 600 / 800 / 1000 / 1200CPSI available.
  • QS-MS020

  • QIAUTS ®

Product Name
QIAUTS ® Metallic Honeycomb Substrates for Catalytic Converter
Material of Outer ShellStainless Steel 304, 316L, 441, 444
Material of Inner CoreStainless Steel FeCr21Al6
Section ShapeRound, Oval, Racetrack, Square, Rectangular and other Special-shapes
Section Size of Substrate12~960 mm
Height of Substrate9~150 mm (single unit)
Cell Density5~1200 cpsi (80, 100, 200, 300, 400, 600, 800, 1000, 1200cpsi etc.)
Thickness of Outer Shell0.5~3.0 mm (can be without outer shell)
Thickness of Inner Foil0.03~0.18 mm
Inner Core Form
one core, double cores, three cores and S cores
Size, Design and Logo are welcome !

QIAUTS® Metallic honeycomb substrate is a new kind of industrial product, as a catalyst carrier which are widely used in automobile emissions purifying system and industrial exhaust gas treatment system.

The Catalyst Metallic Carrier is made of special stainless steel foils, it is application for car three way catalytic converter and other industrial exhaust system. We are able to supply both metallic substrate coated with noble metals of Pt/Pd/Rh and uncoated metallic substrate without noble metals.
